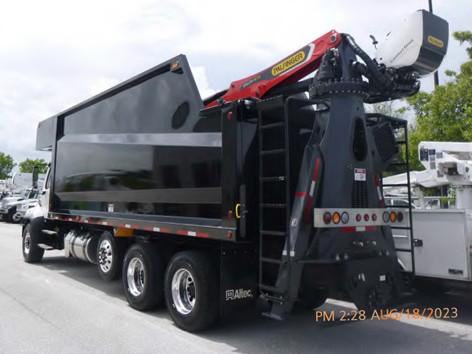

Palfinger M13A98 Rear Mount


The new EPSILON A-Line takes a standard, market-proven and time-tested design to the next level, giving you superior efficiency and comfort on the job with its first in class weight-to-lift ratio and unrivaled Comfort Drive operating system.

Request a Quote



General Specifications:
Reach 32 ft
Capacity 50 yd
Waste Grapple 48 in
Engine Cumminsx12 500V HP
Front Axle Load 20,000 lbs
Rear Axle Load 46,000 lbs
Standard Features:
Features:
  • Double Extending Boom With 32′ Reach
  • 48” waste grapple
  • Debris Dump Body Hardox appox 50 yard
  • Oil Cooler with fan
  • Pintle Hitch
  • Link lift 13.5 axle or equal
  • Body gloss black paint
  • Electric tarp mechanism
  • LED lights and Beacons
  • Chock and outrigger pads and holders
  • Under slung storage

Chassis

  • 2024 Freightliner 114 SD 6×4
  • Fr. Axle Load: 20,000#, Detroit DA-F20.0-5
  • Rr Axle Load: 46,000#, Tuftrac Gen 2
  • CA: 207″
  • WB: 288″
  • Engine: Cumminsx12 500V HP @1900 1900 RPM, 1700 LB-FT @ 1000 RPM, 2000 GOV RPM, VOC
  • Transmission: Allison 4500 RDS-P
  • Front Tires: MICHELIN XZY-3 425/65R22.5 20 PLY RADIAL
  • Rear Tires: MICHELIN X MULTI D 11R22.5 16 PLY RADIAL
  • 90 Gallon Fuel Tank
Optional Features:
Options:
  • Backup-Up Camera and Monitor
  • Kiload Scale System
  • Cone Holder
