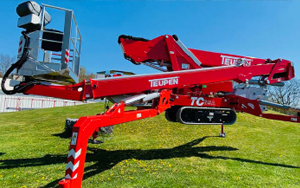

Teupen TC75A


The TC75A is the most versatile and broadly used machine among all CANOPY® models. The low machine weight is a major benefit in both reducing floor loading and improving mobility. Most importantly, its articulated boom design combined with the smooth computer enhanced, electric over hydraulic controls make the machine easy to operate and smooth in movements.

Request a Quote

General Specifications:
Max Working Height 75 ft 5 in
Max Platform Height 68 ft 10 in
Horizontal Outreach with 441 lbs 36 ft 8 in
Max Up-and-Over Clearance 37 ft 9 in
Max Platform Capacity 441 lbs
Max Turntable Rotation 360°
Download Spec Sheet
Standard Features:
Features: CHASSIS

  •  Powerful track drive with hydraulic braking system
  •  Precise maneuvering via sensitive, electro hydraulic cable remote control
  • White, non-marking rubber tracks with specially arranged profile for optimal grip
  • Hydraulically height- and width-adjustable crawler track drive

STABILIZATION

  • Electrohydraulic stabilizers with automatic leveling and ground pressure sensor system
  • Variable stabilization system with one side or both sides narrow setup option
  • Wear resistant, anti-friction outrigger pads
  • 4 sliding pads (27.6 in x 8.7 in x 2.4 in)

BOOM SYSTEM

  • Telescopic lower and upper boom
  • All functions available from the platform
  • Robust, lockable control panel
  • Corner mounted, 180° rotable platform for extra flexibility
  • Turntable rotation via high-performance slewing ring, worm gear and hydraulic motor

POWER SOURCE

  • Diesel engine Kubota Z602, (10,8 kW / 14,5 hp)
  • Start-Stop device for combustion engine in the platfor

PRODUCTIVITY, SAFETY, QUALITY

  • Hydraulic secondary lowering via hand pump
  • Power socket in the platform (115 V / 13 A)
  • Platform including attachment points for safety harnesses
  • Protected, internal power track for platform control
  • Hydraulic system filled with biodegradable hydraulic oil
  • Biodegradable hydraulic oil
  • High-quality paint in RAL 3020 (red)
    •  Hydraulic cylinders in RAL 9006 (grey)
  • Unlockable check valves located directly on hydraulic cylinders
  • Hydraulic system protected by pressure relief valves
  • Hydraulic tank, secondary control, connecting cables and hoses are mounted protected
  • Cable remote control as complete control panel for bottom connection, including storage box
  • Hour meter
  • Fuzzy control technology
  • Tree package, including
    • 4 covers, piston rod (stabilizer)
    • Cover (hydraulic tank)
    • Cover (telescopic cylinder hydraulic connection)
